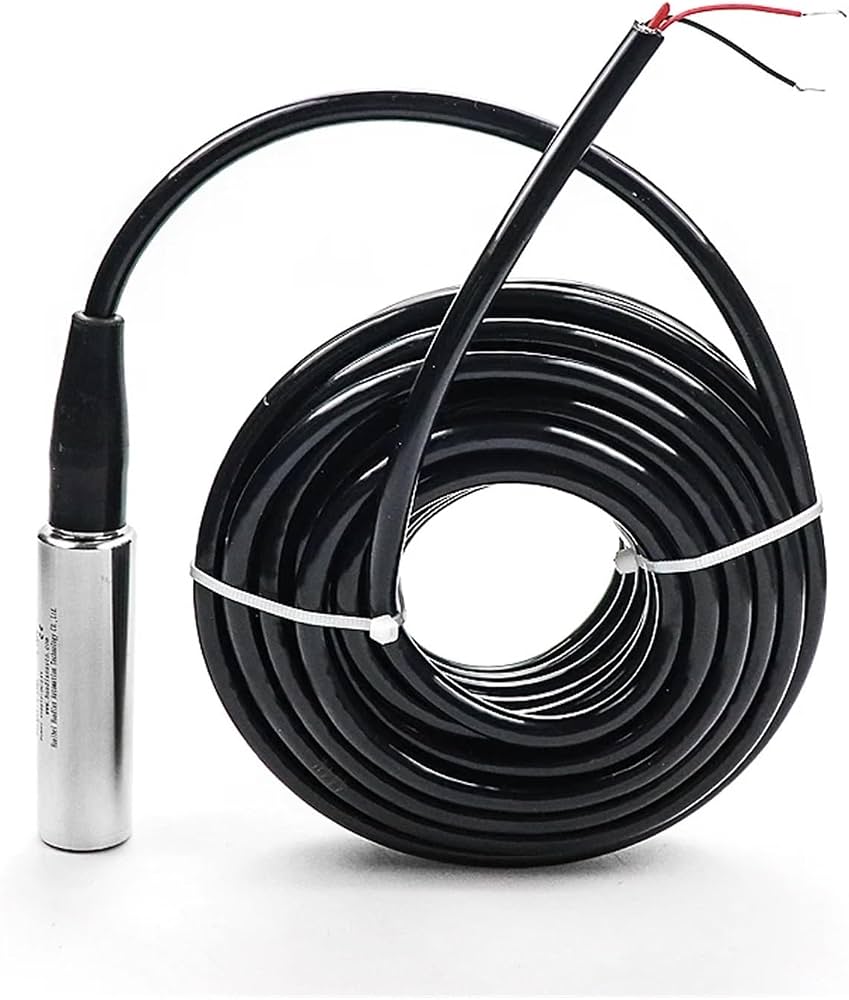

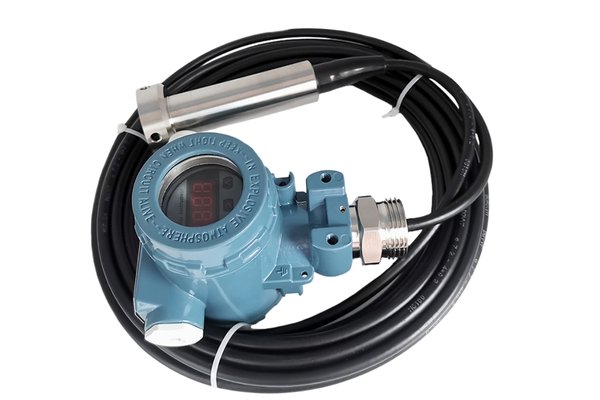

The liquid PHLT-100M level transmitter adopts imported sensor pressure sensitive components, uses computer laser adjustment resistance for temperature compensation, and adopts an integrated junction box design. It has special terminal blocks and digital display, which is convenient for installation, calibration and maintenance. This series of products is suitable for various enterprises and institutions such as petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection, etc., to realize the measurement of liquid level height and suitable for all-weather environments and various corrosive fluids in various occasions.
Technical Data:
- Range: 0–1m up to 100m
- Output Signal: 4–20mA / RS485
- Power Supply: 8–36VDC
- Accuracy: 0.25 / 0.5
- Allowable Overload: 150% of standard range
- Operating Temperature: -40°C to 80°C
- Long-Term Stability: ≤±0.2%FS/year
- Protection: IP67
- Seal Material: Nitrile rubber / Fluorocarbon rubber
- Pressure Port: 1Cr18Ni9Ti
- Housing Material: Die-cast aluminum
- Sensor Diaphragm: Stainless Steel 316L
